Description

PRE-ORDERS ONLY RIGHT NOW. WE ARE PLANNING ON SHIPPING IN EARLY MARCH.



This product listing ships with:

• lattice 1 board
• 5000 mAh li-on battery
• 2GB SD card
• 21 disposable electrodes (1 week full time recording’s worth) and 3 connecting wires

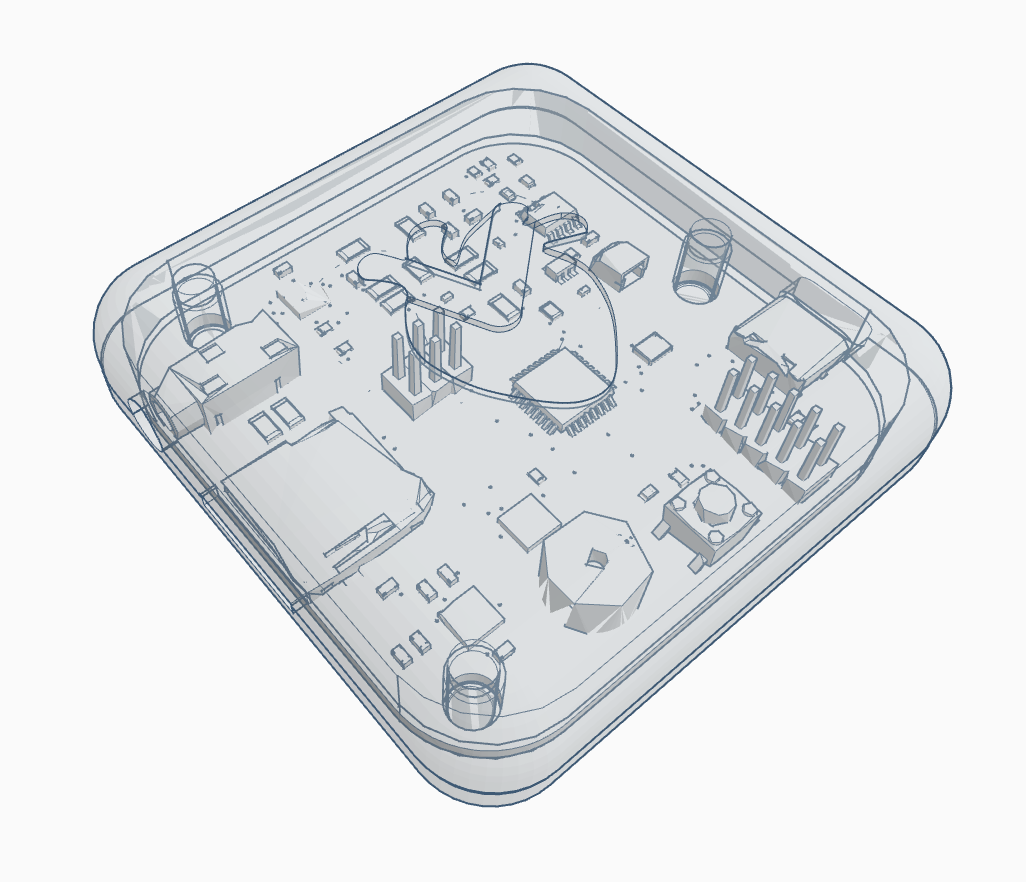

• plastic casing for convenient usage



(subject to small changes, but will stay broadly consistent)

Dimensions: 58mmx58mm

Microcontroller: fully re-programmable atmega328p

Ports: USB-C for charging and data streaming, TRS input port (supports 3 electrodes)

ECG preprocessing: AD8232

Battery: rechargeable 5000mAh lithium-ion battery

Storage: 2GB SD storage (upgradeable)

Electrode cables (3, wired to TRS jack)

Electrodes (21, enough for one week of continuous use)

Case: compact, minimalist case to protect the board



You will need to connect your board to an external device with a screen (like a laptop) to view data in real time. screen not provided. the board can be used for standalone portable data collection without any external devices (writes to SD), or can stream data in real time to anything with a usb-C serial interface.



lattice will release with software which will endeavor to support: afib detection, vfib detection, pvc detection, heart rate tracking, heart rate variability tracking, and more. The software cannot be considered reliable or medical advice, and is for research purposes only. If you are feeling symptoms, call 911.
