Description

PRE-ORDERS ONLY RIGHT NOW. WE ARE PLANNING ON SHIPPING IN EARLY MARCH.



(subject to small changes, but will stay broadly consistent):

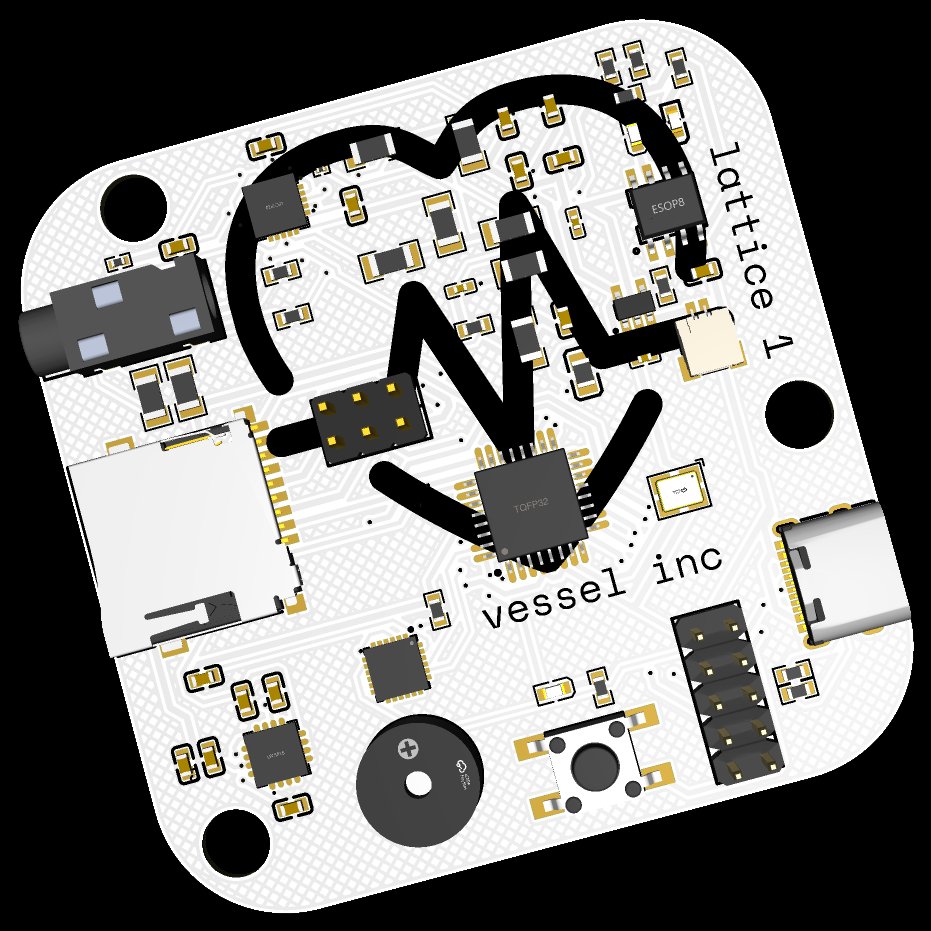

Dimensions: 58mmx58mm

Microcontroller: fully re-programmable atmega328p

Ports: USB-C for charging and data streaming, TRS input port (supports 3 electrodes), microSD slot

ECG preprocessing: AD8232



Requires (NOT INCLUDED, if you would like a kit that includes them, see https://vessel.cx/product/lattice-1-full-kit/)

Battery: lithium ion battery with JST connector (we recommend rechargeable 5000mAh batteries)

Electrode cables (3) and electrodes (3 x number of days you want to use the device)



You will need to connect your board to an external device with a screen (like a laptop) to view data in real time. screen not provided. the board can be used for standalone portable data collection without any external devices (writes to SD), or can stream data in real time to anything with a usb-C serial interface.



the lattice team will release open source software which will endeavor to support: afib detection, vfib detection, pvc detection, heart rate tracking, heart rate variability tracking, and more. The software cannot be considered reliable or medical advice, and is for research purposes only. If you are feeling symptoms, call 911.
